Climate Pro X26
The Climate Pro X26 puts 24,000 Btu/h of reliable cooling with a space-saving footprint of 4.4 sq. ft.
It provides fast and effective temperature control — keeping people and processes on track for uninterrupted productivity.
Climate Pro X26 Features
Get the value you expect.
The Climate Pro X26 features advances that distinguish the entire Climate Pro Series — added assurances of safety and ease of operation.
Advanced features include:
Programmable electronics for automatic cycling after hours and on weekends.
Wireless connectivity-ready for remote monitoring and e-notifications.
Quick-connect nozzle for time-saving setup.
Quiet, reliable operation.
Moderately quiet. At the highest speed with condenser duct, sound level is 66 dB(A).
Specifications
Accessories
Specifications
Electronic Features |
|
| Control Panel | Programmable |
Cooling Capacity |
|
| Rating Conditions: 95°F @ 60% RH | 24,000 Btu/h |
Electrical Characteristics |
|
| Voltage Requirement (60 Hz) | 1 Phase, 208/230 V |
| Total Power Consumption | 2.7 kW* |
| Current Consumption | 12.8 amps* |
| Recommended Fuse Size | 20 amps |
| NEMA Plug Configuration | 6-20P |
| Min. – Max. Voltage | 198 – 253 V |
Fans |
|
| Motor Output | 0.56 kW |
Evaporator |
|
| Fan Type | Centrifugal |
| Max. Air Flow – High/Mid/Low | 700/650/595 CFM |
| Max External Static Pressure | 0.42 IWG |
Condenser |
|
| Fan Type | Centrifugal |
| Max Air Flow – High/Mid/Low | 1475/1370/1260 CFM |
| Max. External Static Pressure | 0.25 IWG |
Compressor |
|
| Type | Hermetic Rotary |
| Output | 1.5 kW |
Refrigerant |
|
| Type | R-410A |
Dimensions |
|
| W x D x H | 22 x 29 x 51 in |
Weight |
|
| Net / Shipping | 216 / 292 lb |
Power Cord |
|
| Gauge | 12 AWG (3-core) |
| Length | 6 ft |
Condensate Tank |
|
| Capacity | 5 gal |
Operating Conditions |
|
| Min. – Max. @ 50% RH | 70° – 113°F |
Max. Duct Length |
|
| Per Cold Duct Hose | 60 ft |
| Hot Duct Hose | 45 ft |
Max. Sound Level |
|
| With Condenser Duct – High/Mid/Low | 66/65/64 dB(A) |
| Without Condenser Duct – High/Mid/Low | 69/68/67 dB(A) |
| *Specification information shown with 230 V. | |
|
Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. |
 |
Accessories

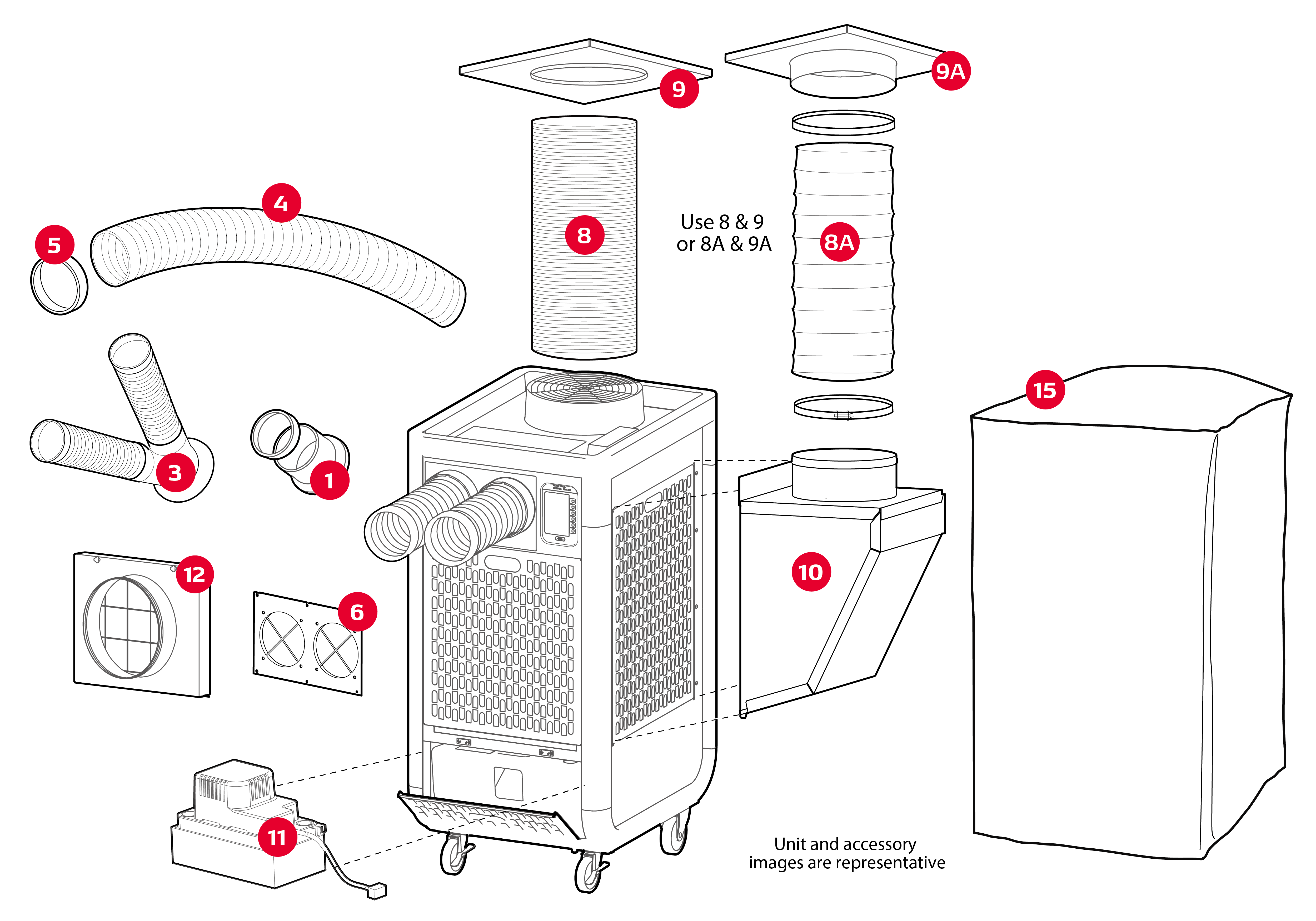

| Images/Videos | Callout No. | Part No. | Item | Description |
|---|---|---|---|---|
(3)
|
1 | 481170-0450 | Supply Air Flange Kit, 5-in dia. | 5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts. |
(2)
|
3 | 484209-0500 | Dual Duct, 5-in dia. | 5-in diameter white plastic flange with two 4-in nozzles that extend to 2 feet in length. |
(2)
|
4 | LA481744-0420 | Self-Supported Duct, 5-in dia. | 5-in diameter, gray plastic duct that extends from 6.5 to 10 feet in length. |
(2)
|
5 | 481851-0200 | Trim Ring, 5-in dia. | 5-in diameter black plastic ring mounts as end caps for extension duct. |
(2)
|
6 | 481769-0310 | Supply Air Nozzle Adapter Kit, 5-in dia. | Adapter converts airflow to air ducts. |
(2)
|
8 | LA481744-0410 | Self-Supported Duct, 12-in dia. | 12-in diameter plastic duct that extends 6.5 to 10 feet in length |
(2)
|
8A | LAY45771-0060 | Flexible Air Duct, 12-in dia. | 12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp. |
(2)
|
9 | LA146373-8280 | Celling Tile Kit, 12-in hole, plastic | 24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct. |
(1)
|
9A | 484490-1030 | Ceiling Tile, 12-in hole, metal | 24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit. Includes clamp. |
(1)
|
10 | 484350-1180 | Outdoor Heat Exchanger Plenum | Black plastic plenum for return air to condenser. Hinged for filter cleaning. |
(1)
|
11 | 484789-0220 | Condensate Pump Kit, 230V | 230V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 17 feet |
(2)
|
12 | 484350-1200 | Indoor Heat Exchanger Plenum | Black plastic plenum for return air to evaporator. |
(1)
|
15 | LA484420-0880 | Storage Cover | Durable black nylon oxford unit storage cover. Dimensions: 22.75 x 29.75 x 45.875 in |
